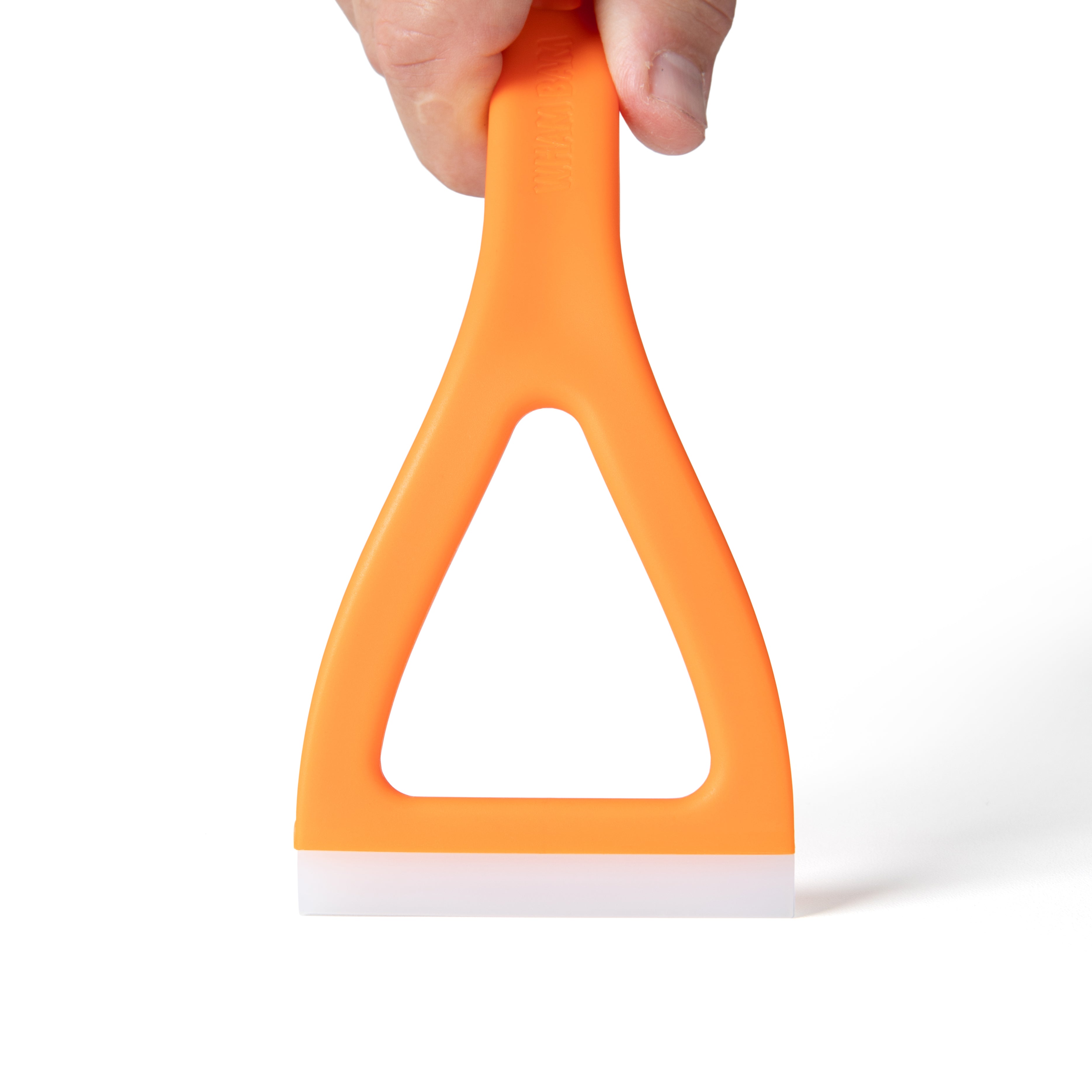

ULTIM8™ WYP - Ultimate Spatula for Resin

If your resin has been sitting in the vat for more than 12 hours, it is critical to mix it thoroughly before initiating the printing process. Over time, resin components tend to separate based on their densities, which can lead to print defects or complete failures.

1. Position the build plate: raise the build plate to its uppermost position on the Z-axis.

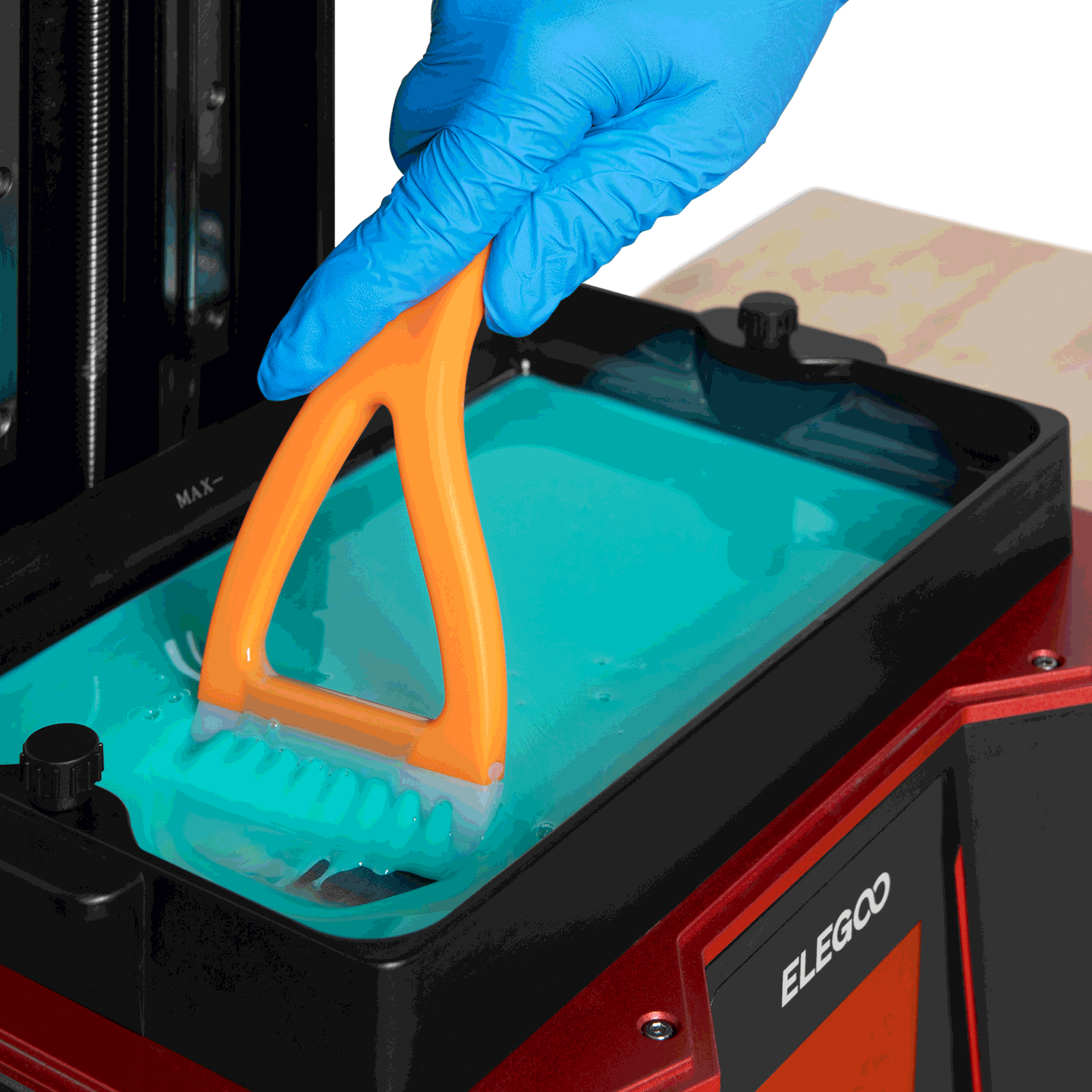

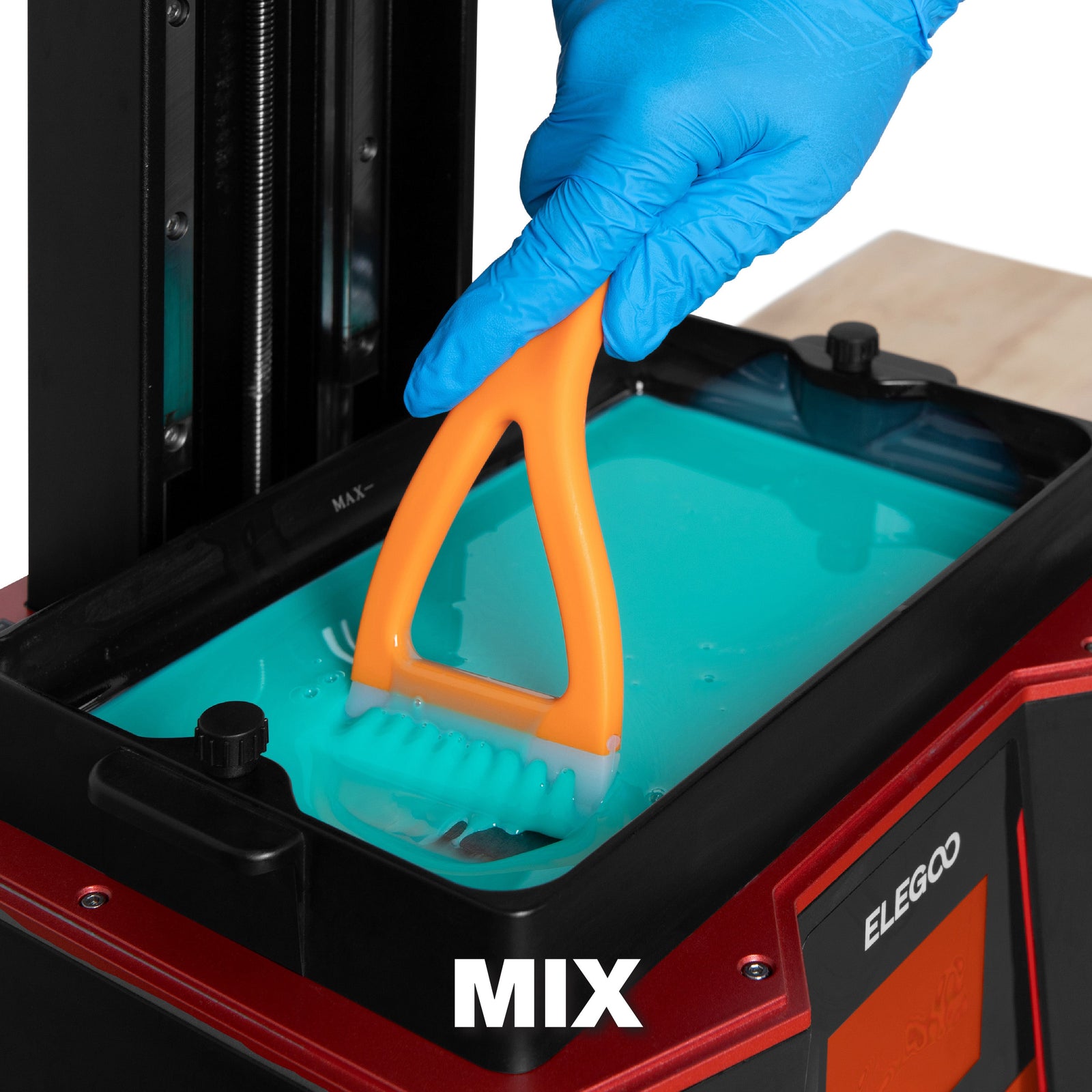

2. Mixing with the ULTIM8™ WYP Blade: using the ULTIM8™ WYP equipped with a silicone Mixing Blade, methodically wipe the resin in the vat. Perform slow, deliberate strokes, applying enough downward pressure to ensure the blade contacts the FEP film at the vat’s bottom. This will help mix any resin that has settled and ensure uniformity throughout the entire volume.
3. Avoid Over-Spill: mix at a controlled speed to prevent creating waves that may cause the resin to overflow from the vat.
4. Resin Quality Check: while mixing, observe for any solidified resin pieces. If detection occurs, it's advisable to halt operations and clean both the FEP and VAT. Alternatively, transfer the resin into an external container using a fine filter and funnel, such as our ULTIM8™ FUN, to eliminate any contaminants.

Proper resin mixing is essential for maintaining print quality and preventing issues related to separation or contamination.

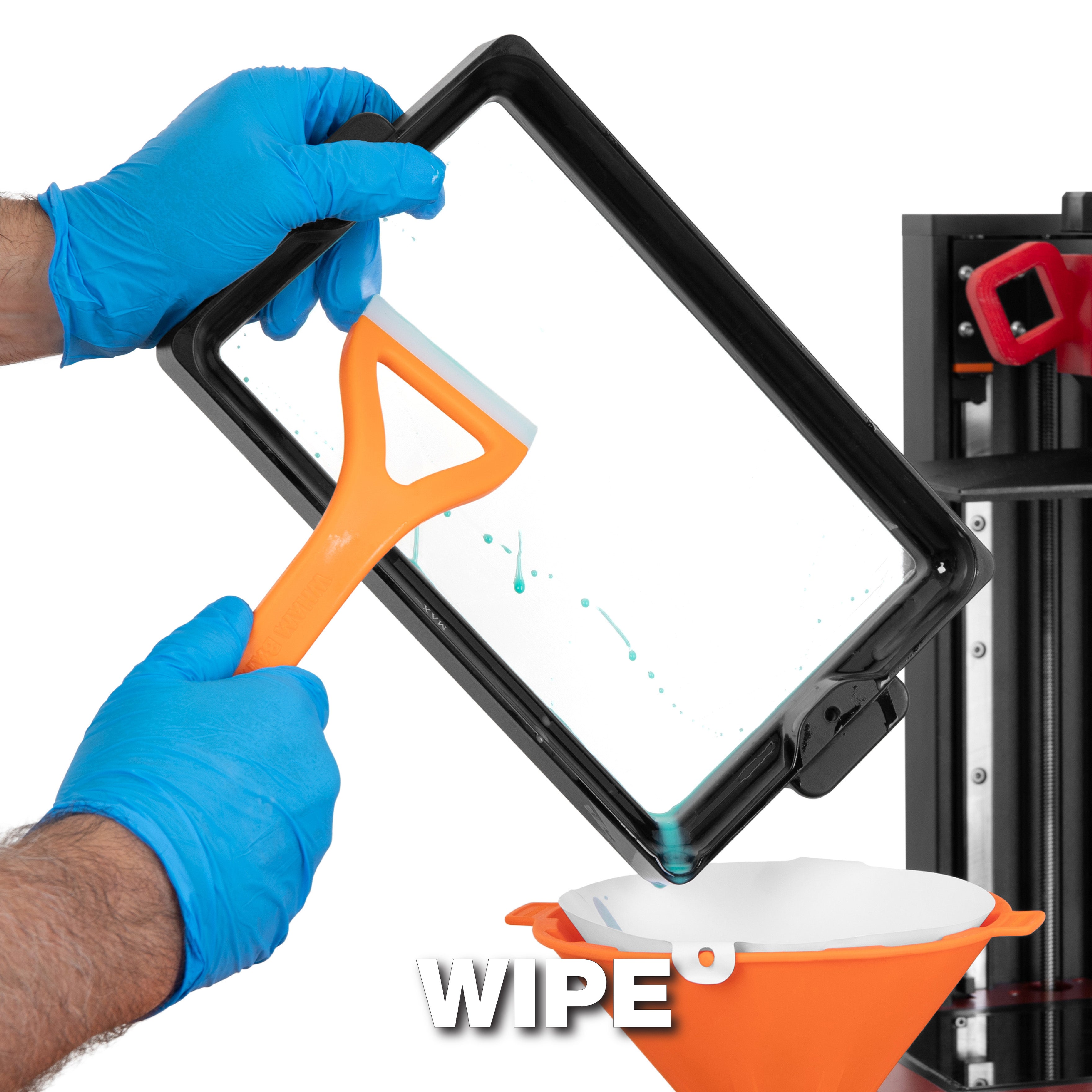

1. Remove resin vat.
2. Initial Wipe: start by using the long silicone blade to remove excess resin from the vat. The flexible design allows you to cover larger areas quickly while preventing scratches on sensitive surfaces.
3. Edge Cleanup: use the blade to wipe around the edges and corners of the vat, ensuring all resin is cleared without damaging the FEP film.
4. Surface Wipe: gently wipe down the FEP film, applying minimal pressure. The silicone material ensures a smooth and safe cleaning process, avoiding damage to the film.
5. Final Pass: perform a final wipe to ensure no residue is left behind, leaving your vat ready for the next use.

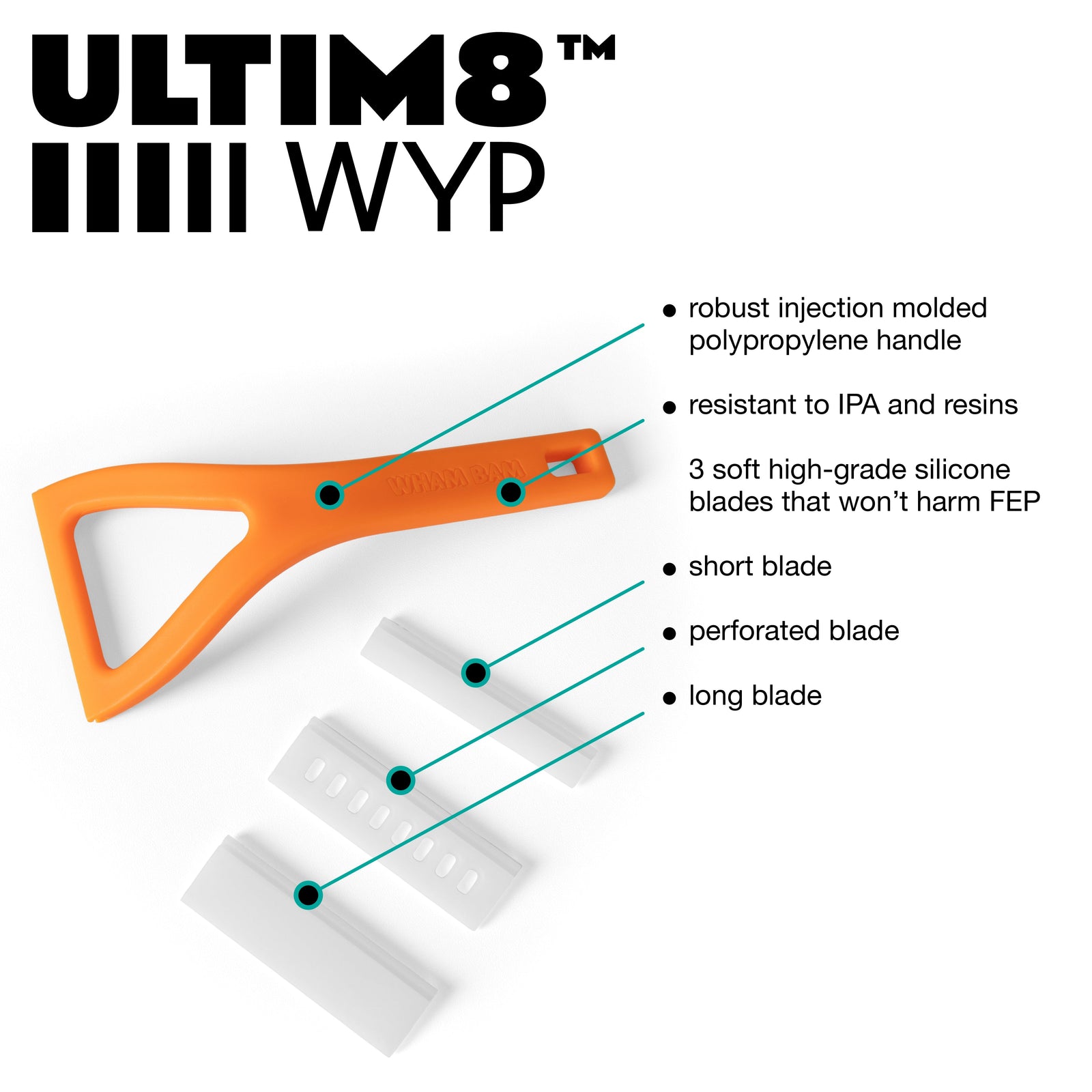

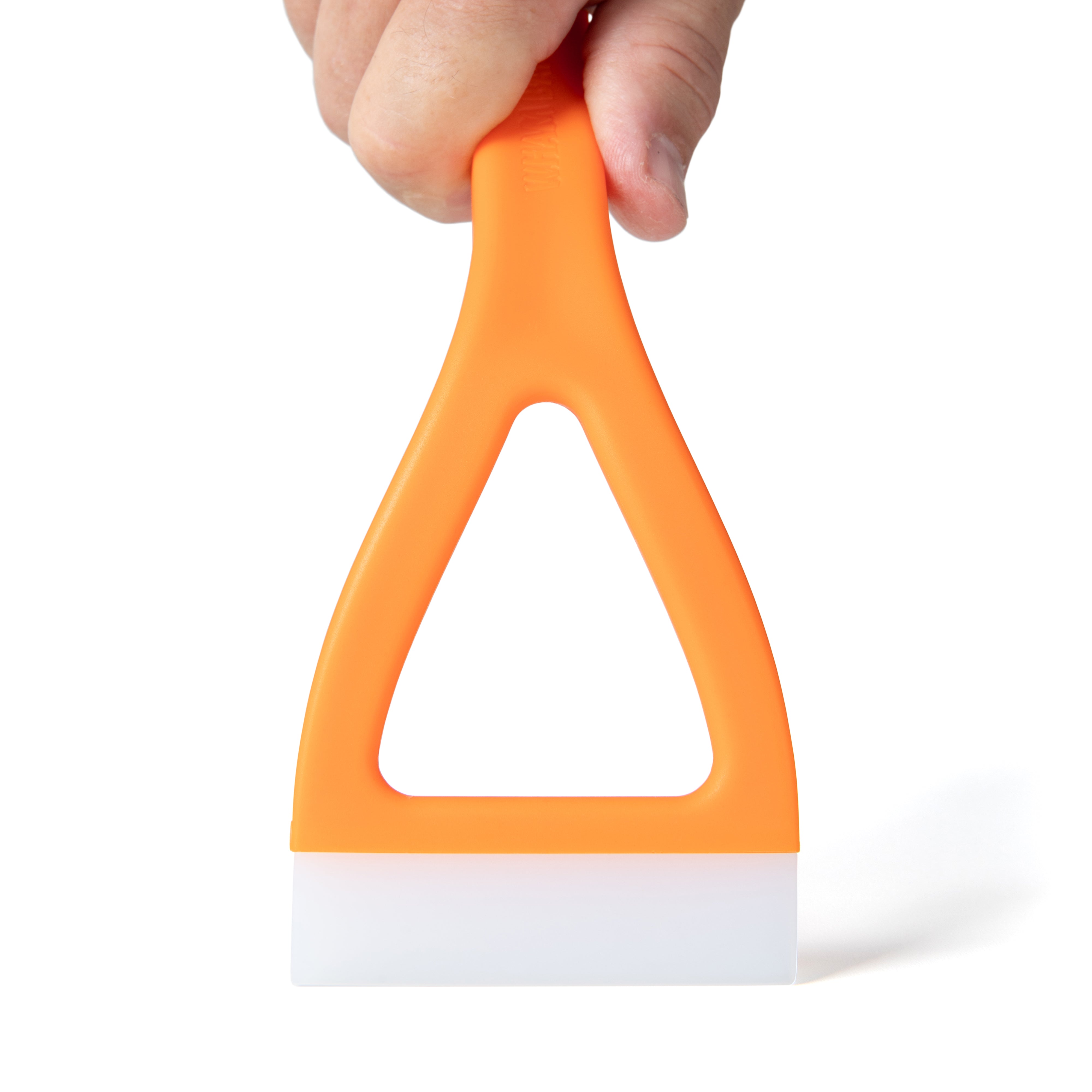

The Long Blade's durable silicone construction is designed for frequent use, providing consistent results for general cleanup and spatula work.

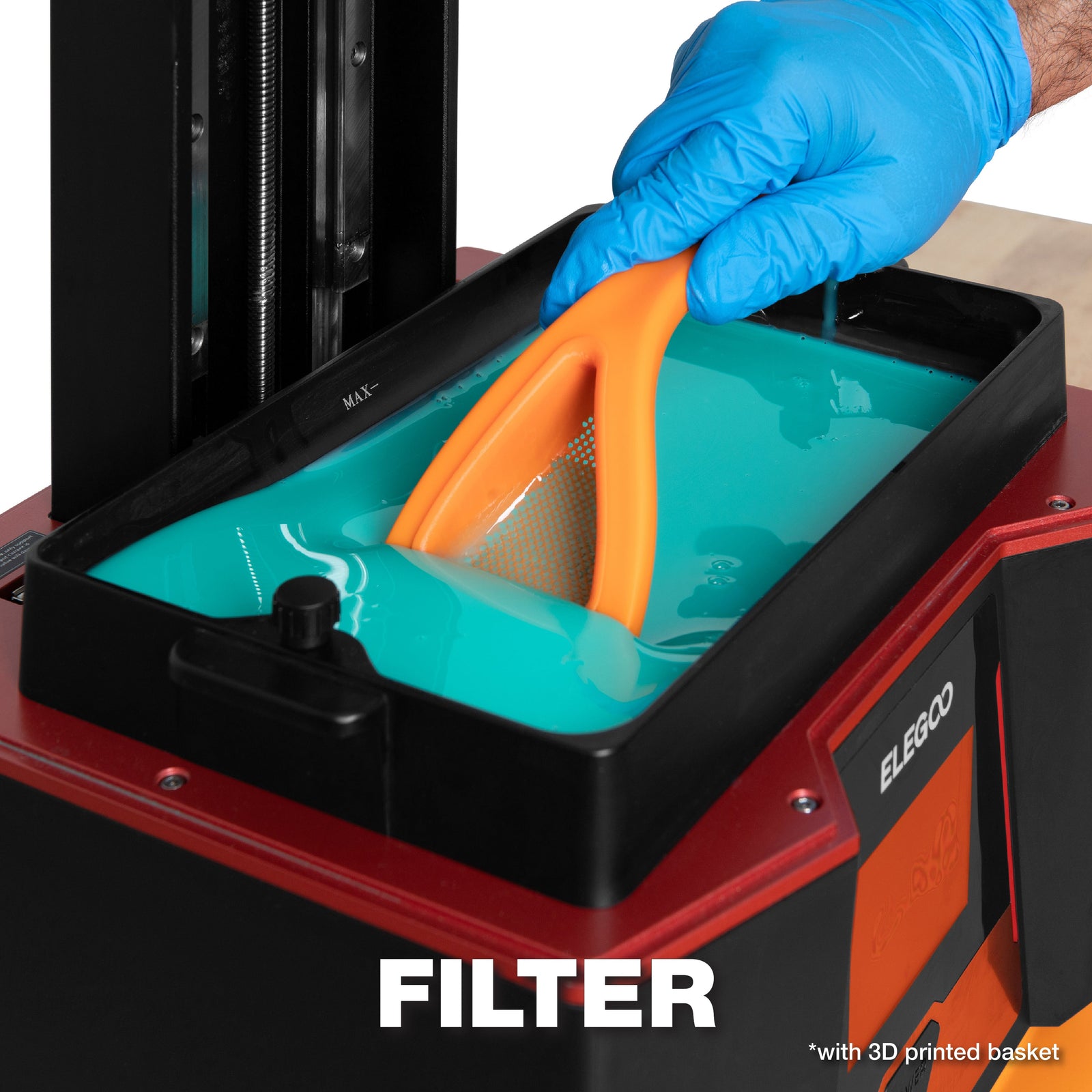

The Short Blade is an ideal solution for filtration tasks in confined spaces. For enhanced functionality, pair it with our free 3D-printable basket to efficiently filter resin directly within the vat.

1. Install the 3D-printed basket inside the Tool (optional)
2. Position the ULTIM8™ WYP tool, equipped with the Short Blade, near the vat’s edge.
3. Gently drag the silicone blade along the FEP film, keeping the WYP angled so that resin flows over the blade and into the basket.
4. Periodically inspect the basket to ensure debris is collected.
